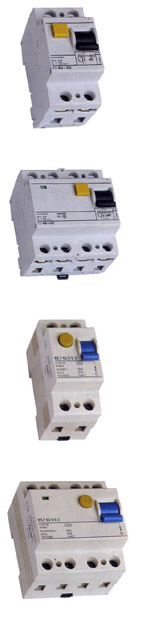

The RCD is in conformity with the standards of IEC1008, GB16916 and BS EN61008. The RCD can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk, thus it is suitable to avoid the shock hazard and fire caused by earth leakage The RCD is mainly suitable for using in variety of plants and enterprises, building construction, commerce, guesthouses and families. It can be used in circuits up to single phase 230V, three phases 400V 50 to 60HZ, RCD is not suitable for using on DC pulse system.
TECHNICAL DATA
Standard: IE1008, GB16916, BS EN61008 Rated voltage (Un): 2poles: 230V AC 4poles: 400V AC Rated current (In): 25, 40, 63A Rated residual operating current(I△no):0.5I△n Residual current off-time:≤0.1s Minimum ＆#118alue of rated making and breaking capacity (Im): 1KA Rated conditional short-circuit current (Inc): In=25, 40A Inc=1500A In=63A Inc=3000A Endurance: on load: 200 cycles Off load: 2000cycles
ELECTRICAL
Design according to
IEC 1008 (EN61008)
Tripping time
undelayed min.10ms delay min.40ms delay with selective disconnecting function
Rated voltage
230/400V;50Hz
Rated tripping current
10,30,100,300,500mA
Sensitivity
AC and pulsating DC
Rated short
10KA with 63a gl back-up fuse
Circuit strenth
10KA with 80A gL (F7-80 and -863) 6KA (rated current 63A) with 63A gL
Maximum back-up fuse for
63gL
short circuit protection
80A gL(F7-80 and -863)
maximum back-up fuse for
45A gL(F7-25 and -40A)
Overload protection
40A gL(F7-80A)
Resistance to climatic conditions
according to IEC 1008
Degree of protection
built-in switch IP 40
Endurance electrical comp. mech comp
≤4.000 operating cycles ≥20.000 operating cycles
MECHANICAL
Frame size
45mm
Socket size
80mm
Device width
35mm(2mod.), 70mm(4mod.)
Mounting
quick fastening with 2 lock-in positions on DIN rail En50022
