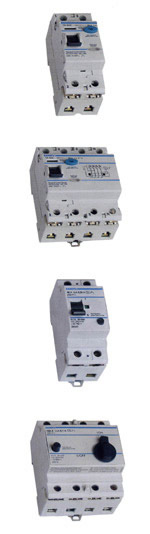

DESRPTION |
To open a circuit automatically in case of an earth leakage fault between phase and earth and/ or neutral greater or equal to 10mA, 30mA, 100mA, 300mA or 500mA. In is used in domestic, commercial and industrial installations. |
EARTH FAULT INDICATOR |
Mechanical indicator appearing on the front face of the RCCB is to be differed between tripping and off position yellow-tripped. |
NUISANCE TRIPPING |
All the RCCBs are protected against transient voltages (lightening, line disturbances and transient currents from high capacitive circuits) DC sensitive RCCBs or time delay devices are available, please consult us you also have the possibility to install the following accessories: electrical cover kit, locking kit. |
Sensitivity |
Pole |
Current rating |
cat.ref. |
|
2 |
16A |
CC216B |
|
2 |
25A |
CC225B |
|
|
|
|
30mA |
2 |
16A |
CD216B |
|
2 |
25A |
CD225B |
|
2 |
40A |
CD240B |
|
2 |
63A |
CD263B |
|
2 |
80A |
CD280B |
|
2 |
100A |
CD284B |
|
4 |
25A |
CD425B |
|
4 |
40A |
CD440B |
|
4 |
63A |
CD463B |
|
4 |
80A |
CD480B |
Medium sensitivity:100mA |
2 |
25A |
CE225B |
|
2 |
40A |
CE240B |
|
2 |
63A |
CE263B |
|
2 |
80A |
CE280B |
|
2 |
100A |
CE284B |
|
4 |
25A |
CE425B |
|
4 |
40A |
CE440B |
|
4 |
63A |
CE463B |
|
4 |
80A |
CE480B |
Low sensityvity:300mA |
4 |
100A |
CE484B |
|
2 |
25A |
CF225B |
|
2 |
40A |
CF240B |
|
2 |
63A |
CF263B |
|
2 |
80A |
CF280B |
|
2 |
100A |
CF284B |
|
4 |
25A |
CF425B |
|
4 |
40A |
CF440B |
|
4 |
63A |
CF463B |
|
2 |
80A |
CF480B |
|
2 |
100A |
CF484B |
Low sensitivity:500mA |
2 |
25A |
CG225B |
|
2 |
40A |
CG240B |
|
2 |
63A |
CG263B |
|
2 |
80A |
CG280B |
|
2 |
100A |
CG284B |
|
4 |
25A |
CG425B |
|
4 |
40A |
CG440B |
|
4 |
63A |
CG463B |
|
4 |
80A |
CG480B |
|
4 |
100A |
CG484B |
Terminal cover kit: |
For RRCBS2 |
16 to 63A |
10sets |
CZ005 |
(1se=2 covers) |
For RRCBS4 |
16 to 63A |
10sets |
CZ006 |
|
For RRCBS2 |
80 to 100A |
10sets |
CZ007 |
|
For RRCBS4 |
80 to 100A |
10sets |
CZ008 | |
