ECC GROUP

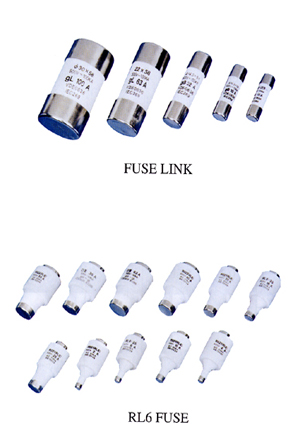

CYLINDRICAL FUSE

APPLICATIONS

The fuses with fuse links having cylindrical contact caps are designed for protecting electrical distributing installations of rated voltage of 380V AC, with rated current up to 125A against damage due to overload and short circuit current.
Fuse links with the sticker re supplied for purpose of protecting motors against motor single phasing operation when fitted in fuse isolators.

TECHNICAL SPECIFICATIONS

Dimension mm

Rated current(A)

Hamx

φC

(mm)

8.5×31.5

2,4,6,10,16

31.5±	0
	0.6

8.2

8.5±0.1

10×38

2,4,6,10,16,20,25,32

31.5±

0.6

10.5

10.3±0.1

14×51

2,4,6,10,16,20,25,32,40,50,63

51±	06
	10

13.8

14.3±0.1

22×58

10,16,20,25,32,40,50,63,80,100

58±	01
	20

16.2

22.2±0.1

30×58

63,80,100,125

58±	01
	20

16.2

30±0.1
