ABS-D SERIES MCCB

ABS-D series moulded case circuit breaker is suitable for industral or commercial power and lighting AC 50/60Hz,rated working voltage up to AC 600V/DC250V,rated current up to 1200A.It's kind of economical breaker with the characters of stable and reliable function,beautiful appearance,small size and long life.It can be used for conversion of line and infrequent starting motor.It can alse be attached to install the accessories which have protection function for avoiding loss-voltage,under-voltage.The product can install connection line with front board and back board,it also can be equipped hand-operating apparatus or motor-operating apparatus to control in a remote distance.

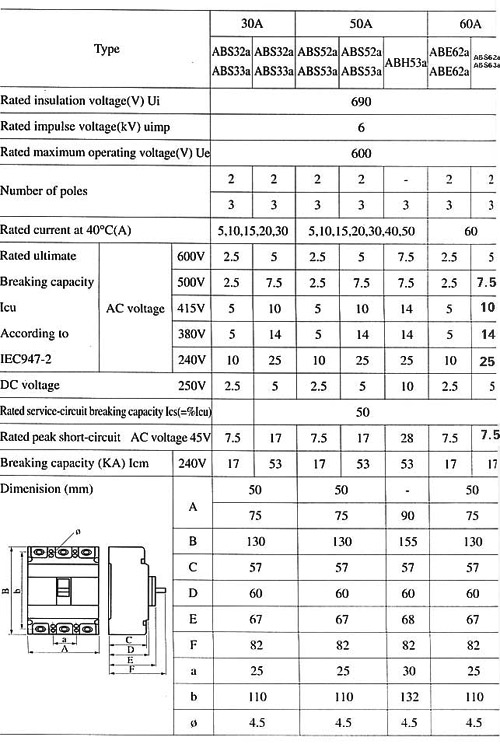

SPECIFICATION
