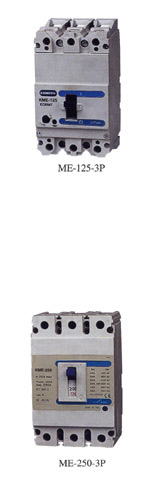

ME MOULDED CASE CIRCUIT BREAKER

SPECIFICATION:
ME moulded case circuit breaker are highly specified. Positive contact indication is standard, with three positions "On" "OFF" and center "TRIPPED" being prevents the MCCBS contacts from being held closed in the event of over current.
ME mounded case circuit breaker 3 & 1 pole units have a trip to test button provided as standard. All main contacts are of quality. Sliver alloy construction for durability. Complying with IEC947-2 is covered by type test and marine approval certification.
1. Mould case circuit breakers 16 to 200A
2. Available in three ranges: standard, standard adjustable, Hi-break adjustable.
3. Complies with IEC 60947-2
4. Current limiting action provides low &#118alues of lot-through energy.
KTME STANDARD RANGE:
MCCB Description
Standard range
Current rating (A)
standard range
1Pole
List number
3Pole
List Number
16A
ME161
ME163
20A
ME201
ME203
32A
ME321
ME323
40A
ME401
ME403
50A
ME501
ME503
63A
ME631
ME633
80A
ME801
ME803
100A
ME1001
ME1003
125A
ME1251
ME1253
160A
ME1604
ME1603
200A
-
ME2003

Impulse withstand V.
8KV
8KV
Utilisation category
A
A
Adjustment thermal
Fixed
Fixed
Adjustment magnetic
Fixed
Fixed
Therminal capacity(Max)
120mm2
120mm2

Breaking capacity IEC60947 2/BS EN60947-2(AC 50/60Hz)
690V AC
Icu(KA)
Icu(KA)
-
-
12
12
480V AC
Icu(KA)
Icu(KA)
-
-
20
20
400V AC
440V AC
Icu(KA)
Icu(KA)
-
-
25
25
380V AC
Icu(KA)
Icu(KA)
-
-
30
30
220V AC
240V AC
Icu(KA)
Icu(KA)
25
19
40
40
250V DC
Icu(KA)
Icu(KA)
-
-
37
19
