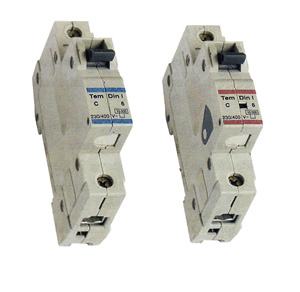

DS MINI CIRCUIT BREAKER
MAIN TECHNICAL DATA

Standard:IEC898, En60898
Number of pole: 1, 2, and 3
Rated voltage: 230/400V AC
Rated current: 6, 10, 16, 20, 25, 32, 40, 50, 63A
Breaking capacity: 6KA
Electrical endurance: 10,000times
Protecting grade:IP20

INSTALLATION
On symmetrical DIN rail 35mm2
Panel mounting
