ECC GROUP

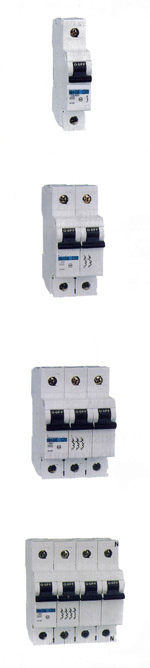

BH-D6 MINI CIRCUIT BREAKER

APPLICATIONS

BH-D6 products of domestic power distribution box have come out. The high-quality and high-function circuit breaker used in domestic power distribution box is looking forward to your selection and application.

FUNCTION

All the machines meet the standards of IEC and GB
They can be installed in the track or 35mm of IEC
They have the function of high current limit.

SPECIFICATION

Stardand

GB10963,IEC60898

Rated voltage

230/400VAC,50/60Hz

Rated current In

6,10,13,16,20,25,40,50,63A

Ambient temperture

-10℃~40℃

Inst trip current

B,C,D

Rated short-circuit interrupting capacity

6KA

Rated running short-circuit interupting capacity

6KA

Mechanical life

8000

Electrical life

8000

Fix

Tack of 35mm of IEC

Terminal (the side of ON)

Non-weld tin terminal

Terminal (the side of OFF)

Non-weld tin terminal/terminal with mouth

Bus.t

0.7-1.5mm

Applied wire

1-2.5mm²

Releasing method of overload

Termal-coil magnetic

Accessories

Insulation-board
