GENERAL RELAY(2)

APPLICATIONS
TY2P 3P general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc. it is characteristic of stable performance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service life. The plug-in base of the relay is suitable for using with standard 8 and 11 pins socket.

Type
Weight
Contact capacity
Coil nominal voltage
Coil nominal power
Insulation resistance
Contact resistance
Dielectric strengh
Expectancy(ops)Electrical Mechanical
Operating termperature

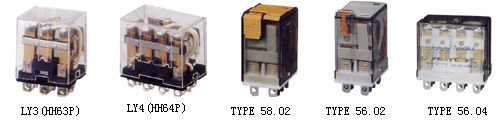

LY3(HH63P)
≤50g
10A 250VAC
10A 28VDC
DC 6V to 110V
AC 6V TO240V
DC ≤ 1.4W
AC ≤ 2.0VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 70℃
LY4(HH64P)
≤70g
10A 250VAC
10A 28VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 1.6W
AC ≤ 2.5VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 70℃
TYPE58.02
≤35g
10A 250VAC
10A 28VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 0.9W
AC 0.9VA to 1.2VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 70℃
TYPE56.02
≤35g
10A 250VAC
10A 28VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 0.9W
AC 0.9VA to 1.2VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 70℃
TYPE56.04
≤70g
10A 250VAC
10A 28VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 1.6W
AC ≤ 2.5VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 70℃
Type
Weight
Contact capacity
Coil nominal voltage
Coil nominal power
Insulation resistance
Contact resistance
Dielectric strengh
Expectancy(ops)Electrical Mechanical
Operating termperature

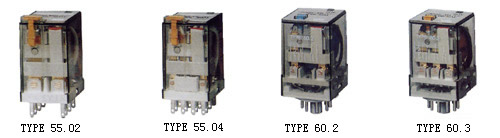

TYPE55.02
≤35g
10A 250VAC
10A 30VDC
DC 6V to 110V
AC 6V TO240V
DC ≤ 0.9W
AC 0.9VA to 1.2VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 60℃
TYPE55.04
≤35g
5A 250VAC
5A 30VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 0.9W
AC 0.9VA to 1.2VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 60℃
TYPE60.2
≤80g
10A 250VAC
10A 30VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 0.9W
AC 0.9VA to 1.2VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 60℃
TYPE60.3
≤80g
10A 250VAC
10A 30VDC
DC 6V to 110V
AC 6V to 240V
DC ≤ 0.9W
AC 0.9VA to 1.2VA
≥100MΩ
≤50mΩ
BOC 1000VAC
BCC 1500VAC
Ele 100,000
Me 10,000,000
-40℃ to 60℃
