GENERAL RELAY(1)

APPLICATIONS

MY, LY general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc. it is characteristic of stable performance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service life. The plug-in base is suitable for using with standard 8, 11 & 14 pins socket. They cover the rated current from 3A to 15A.

Type	Weight	Contact capacity	Coil nominal voltage	Coil nominal power	Insulation resistance	Contact resistance	Dielectric strengh	Expectancy(ops)Electrical Mechanical	Operating termperature

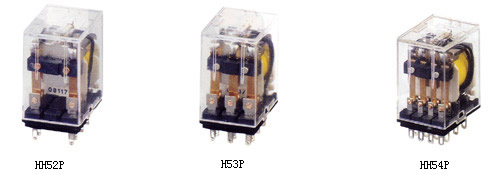

HH52P	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V TO240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
HH53P	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V to 240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
HH54P	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V to 240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃

Type	Weight	Contact capacity	Coil nominal voltage	Coil nominal power	Insulation resistance	Contact resistance	Dielectric strengh	Expectancy(ops)Electrical Mechanical	Operating termperature

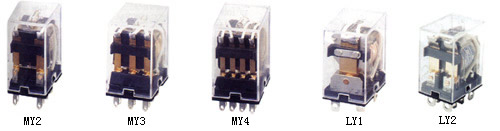

MY2	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V TO240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
MY3	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V to 240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
MY4	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V to 240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
LY1	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V to 240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
LY2	≤35g	5A 250VAC 5A 30VDC	DC 6V to 110V AC 6V to 240V	DC ≤ 0.9W AC 0.9VA to 1.2VA	≥100MΩ	≤50mΩ	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40℃ to 60℃
