RH SERIES THERMAL RELAY

APPLICATIONS

RH series thermal relay can be used in the circuits of 50HZ or 60HZ, rated working voltage 660V, rated working current 0.43-45A for protecting the phase break when the electric motor is overload.

SPECIFICATION

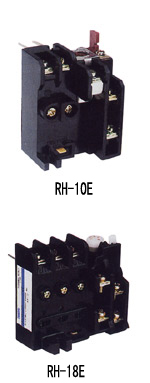

Type	RH-10E	T-5N	RH-18M
Pole	2P	3P	2P/3P
Type of auxiliary contact	IN/C Ib(Ic)	2N/C Iab(Ic)
Reset type	Manual or automatic
Rated current range (A)	0.43-0.67 0.6-1.0 0.9-1.1 1.3-2.1 1.7-2.7 2.4-3.6 3-5 4-6 5.5-8.5 8-12	0.2-0.28 0.28-0.42 0.4-0.6 0.55-0.85 0.7-1.1 1-1.6 1.4-2 1.7-2.1 2-3 2-4 4-8 8-16	0.43-0.67 0.6-1.0 0.9-1.1 1.3-2.1 1.4-2 1.7-2.7 2.4-3.6 3-5 4-6.5 5.5-8.5 8-12 12-18 16-24 21-31
