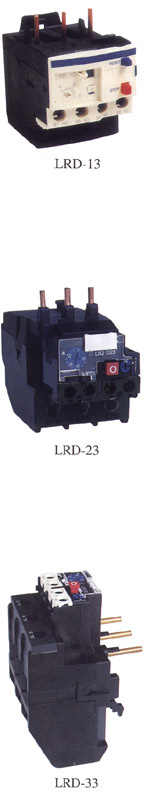

LRD THERMAL RELAY
SPECIFICATIONS
Differential thermal overload relays for using with fuse
Compensated relays with manual or automatic rest, with ralay trip indicator, for AC, or DC.
Relay setting range

For using with contactor LC2-
Reference
Weight
aM
gG
BS88
A
A
A
A



Class 10A(1) with connection by screw clamp teminals
0.10...0.16
0.25
2
-
D09...D38

LRD-01
0.124
0.16...0.25
0.5
2
-
D09...D38
LRD-02
0.124
0.25...0.40
1
2
-
D09...D38
LRD-03
0.124
0.40...0.63
1
2
-
D09...D38
LRD-04
0.124
0.63...1
2
4
-
D09...D38
LRD-05
0.124
10001.7
2
4
6
D09...D38
LRD-06
0.124
1.6...2.5
4
6
10
D09...D38
LRD-07
0.124
2.5...4
6
10
16
D09...D38
LRD-08
0.124
4...6
8
16
16
D09...D38
LRD-10
0.124
5.5...8
12
20
20
D09...D38
LRD-12
0.124
7...10
12
20
20
D09...D38
LRD-14
0.124
9...13
16
25
25
D12...D38
LRD-16
0.124
12...18
20
35
32
D18...D38
LRD-21
0.124
16...24
25
50
50
D25...D38
LRD-22
0.124
23...32
40
63
63
D25...D38
LRD-32
0.124
30...38
50
80
80
D32 and D38
LRD-35
0.124
17...25
25
50
50
D40...D95
LRD-3322
0.510
23...32
40
63
63
D40...D95
LRD-3353
0.510
30...40
40
100
80
D40...D95
LRD-3355
0.510
37...50
63
100
100
D40...D95
LRD-3357
0.510
48...65
63
100
100
D50...D95
LRD-3359
0.510
55...70
80
125
125
D50...D95
LRD-3361
0.510
63...80
80
125
125
D65 and D96
LRD-3363
0.510
80...104
100
160
160
D80 and D95
LRD-3365
0.510
80...104
125
200
160
D115 and D150
LRD-4365
0.900
95...120
125
200
200
D115 and D150
LRD-4367
0.900
110...140
160
250
200
D150
LRD-4369
0.900
80...104
100
160
160
(2)
LRD-33656
1.000
95...120
125
200
200
(2)
LRD-33676
1.000
110...140
160
250
200
(2)
LRD-33696
1.000
Class 10A(1)with spring terminal connections(for direct mounting on the contactor only)
0.10...0.16
0.25
2
-
D09...D38
LRD-013
0.140
0.16...0.25
0.5
2
-
D09...D38
LRD-023
0.140
0.25...0.40
1
2
-
D09...D38
LRD-033
0.140
0.40...0.63
1
2
-
D09...D38
LRD-043
0.140
0.63...1
2
4
-
D09...D38
LRD-053
0.140
1...1.6
2
4
6
D09...D38
LRD-063
0.140
1.6...2.5
4
6
10
D09...D38
LRD-073
0.140
2.5...4
6
10
16
D09...D38
LRD-083
0.140
4...6
8
16
16
D09...D38
LRD-103
0.140
5.5...8
12
20
20
D09...D38
LRD-123
0.140
7...10
12
20
20
D09...D38
LRD-143
0.140
9...13
16
25
25
D12...D38
LRD-163
0.140
12...18
20
32
32
D18...D38
LRD-213
0.140
16...24
25
50
50
D25...D38
LRD-223
0.140
Thermal overload relays for using with unbalanced loads
Class 10A(1) with connection by screw clamp terminals
Change the prefix in the references above from LRD(except LRD-4...)to LR3-D
Exaple:LRD-01 becomes LR3-D01
Termal overload relays for using on 1000V supplies
Class 10A(1) with connection by screw clamp terminals
(1) Standard IEC947-1 specifies a tripping time for 7.2 times the setting current IR;class 10A; between 2 and seconds.
(2)Independent mounting
