APPLICATION |

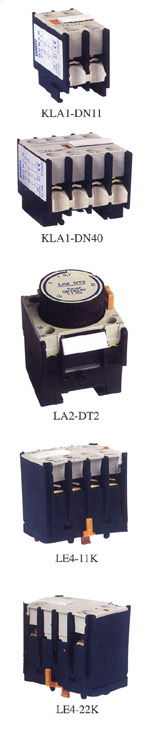

| LA1-D series auxiliary contact blocks are installed on the top of CA2-D control relay or LC1-D contactor for expanding the couples of auxiliary contacts points. Owing to adopting the contacting functions of sliding frictions, the item can be self-cleaning & ensure the electric circuit to be reliable. |
| SPECIFICATION |
|
Type |
LA1-DN02 |
LA1-DN11 |
LA1-DN20 |
LA1-DN22 |
LA1-DN40 |
LA1-DN04 |
LA1-DN13 |
LA1-DN31 |
|
contact number |
2NC |
NO+NC |
2NO |
2NO+NC |
4NO |
4NC |
1NO+1NC |
3NO+1NC | |
|
APPLICATION |
| LA2-D timer delay auxiliary contact blocks are combined with LC1-D AC contactor & LA1-D auxiliary contact block into LC3-D star-delta reduced voltage starter is to start motor |
|
SPECIFICATION |
|
Type |
Delay range |
Number of the delay contacts |
|
LA2-DT0 |
0.1-3s |
NO+NC |
|
LA2-DT2 |
0.1-30s |
|
LA2-DT4 |
10-180s |
|
LA3-DR2 |
0.1-30s |
|
LA3-DR4 |
10-180s |
|
DLA3-DR2 |
0.1-3s | |
|

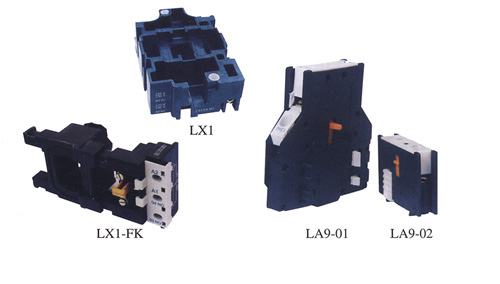

LX1-D2: |
used for Contactor |
LC1-D09 to LC1-D18 |
|
LX1-D4: |
used for Contactor |
LC11-D25 to LC1-D32 |
|
LX1-D6: |
used for Contactor |
LC1-40 to LC1-D95 |
|
LX1-FF: |
used for Contactor |
LC1-F115 to LC1-F150 |
|
LX1-FG: |
used for Contactor |
LC1-F185 to LC1-F225 |
|
LX1-FH: |
used for Contactor |
LC1-F265 to LC1-F330 |
|
LX1-FJ: |
used for Contactor |
LC1-F400 |
|
LX1-FK: |
used for Contactor |
LC1-F500 |
|
LX1-FL: |
used for Contactor |
LC1-F630 |
|
LX1-FK(1): |
used for Contactor |
LC1-F780 | |
|
|
