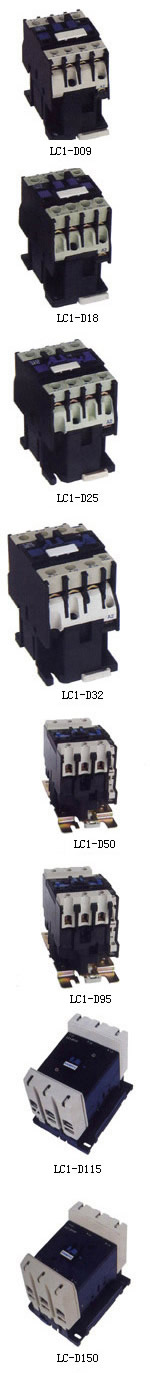

LC1-D series AC contactor is suitable for suing in the circuits up to rated voltage 660V AC 50/60HZ, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contactor, mechanical interlocking contactor, and star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS5452.
SPECIFICATION
Type
LC1-D09
LC1-D12
LC1-D18
LC1-D25
LC1-D32
Rated working current(A)
AC3
9
12
18
25
32
AC4
3.5
5
7.7
8.5
12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)
220/230V
2.2
3
4
5.5
7.5
380/400V
4
5.5
7.5
11
15
415V
4
5.5
9
11
15
440V
4
5.5
9
11
15
500V
5.5
7.5
10
15
18.5
660/690V
5.5
7.5
10
15
18.5
Rated heat current (A)
20
20
32
40
50
Electrical life
AC4×104
20
20-15
20-7
15-7
15-7
AC3×106
2
2
2
2
2
Mechanical life×106
20
20
20
20
20
Number of the contacts
3P+NO
3P+NC
Type
LC1-D40
LC1-D50
LC1-D65
LC1-D80
LC1-D95
Rated working current(A)
AC3
40
50
65
80
95
AC4
18.5
24
28
37
44
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)
220/230V
11
15
18.5
22
25
380/400V
18.5
22
30
37
45
415V
22
25
37
45
45
440V
22
30
37
45
45
500V
22
30
37
55
55
660/690V
30
33
37
45
45
Rated heat current (A)
60
80
80
125
125
Electrical life
AC4×104
10-7
7
7-6
7-5
7-5
AC3×106
2
2
1.6
1.6
1.6
Mechanical life×106
20
20
20
20
20
Number of the contacts
3P+NO+NC
OUTLINE & MOUNTING SIZES Outline & mouting sizes of LC1-115-330 contactors are shown as followings:
